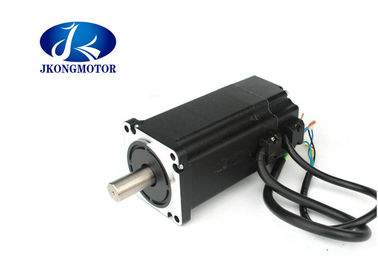

| 起源の場所: | 江蘇省、中国（本土） |
| ブランド名: | Jkongmotor |
| 証明: | CE, ROHS,ISO9001 |
| モデル番号: | JK60BLS01 |
| 最小注文数量: | 3-10PCS |
|---|---|
| 価格: | US $16-25.5 / Units | 3 Unit/Units (Min. Order) |
| パッケージの詳細: | 輸出カートンを使って。パレットとの大きい量 |
| 受渡し時間: | サンプルのため、バッチ、15-25daysのための7-15日/ |
| 支払条件: | 、ウェスタン・ユニオンpaypal、T/T L/C |
| フェーズ: | 3の3段階 | タイプ: | 雑種 |
|---|---|---|---|
| ステップ角度（程度）: | 1.8 度 | トルクの保持: | 0.3N.m |
| 流れ/段階: | 2.8A | モーター長さ: | 78mm |
| 電圧範囲: | 48V | 適したモーター: | NEMA 24のステッピング モーター |
| MOQ: | 10個 | ||
| ハイライト: | bldc motor,micro brushless dc motor |
||
Genaral Specification:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 115N ＠20mm form the flange |
| Max.axial force | 45N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
Electrical Specification:
| Model | |||||
| Specification | Unit | JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 48 | |||
| Rated Speed | Rpm | 3000 | |||
| Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
| Rated Power | W | 94 | 188 | 283 | 377 |
| Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
| Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
| Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
| Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
| Rotor Inertia | Kg.cm^2 | 0.24 | 0.48 | 0.72 | 0.96 |
| Body Length | mm | 78 | 99 | 120 | 141 |
| Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||
Products of special request can be made according to the customer request !
Further More Information
Q1: What about your warranty?
A: We guarantee is one year . for sea order . is 15months.
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.
Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM andmake customized design for any specific application.
Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.
Q5: What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
